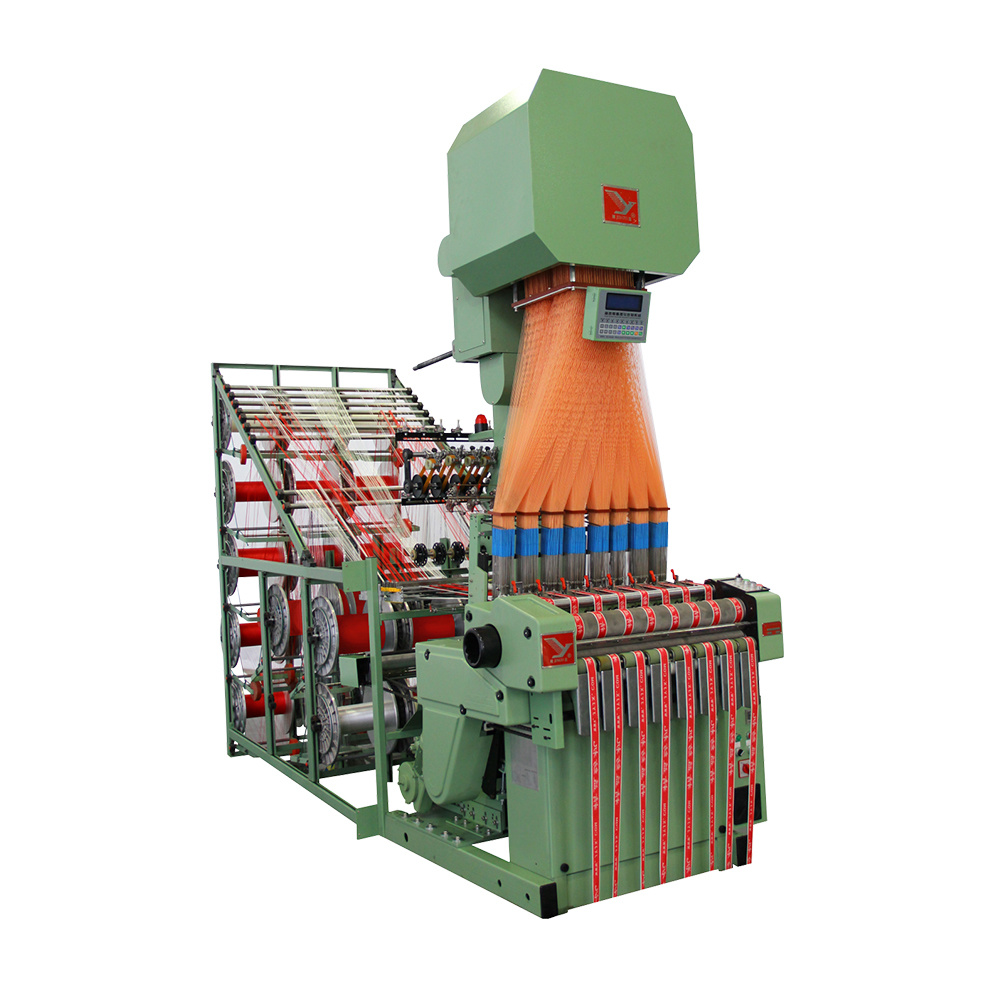

JYFJ Series of Electric Jacquard Needle Looms

JYFJ Series of Electric Jacquard Needle Looms

Optimally and flexibly used in the weaving of various kinds of elastic and non-elastic jacquard tapes and etc.
Equipped with take-off roller made of rubber or metal on require.

SKU: JYFJ Category: Brand:

Description

Model 10/27 12/27 8/30 10/30 8/35 10/35 10/42 6/45 8/45 8/50 6/50 6/65 6/90 4/90 4/100 2/110 2/130 2/160
Output line 10 12 8 10 8 10 10 6 8 8 6 6 4 4 4 2 2 2
Width of weaving head 27 30 30 30 35 35 42 45 45 50 50 65 90 90 100 110 130 160
Weft insertion direction Single roller Single roller / Double roller for choose Double roller
Number of frame According to hook number
Jacquard hooks 128 / 192 / 240 / 320 / 384 / 448 / 512 / 640 / 768 / 864 / 960 / 1056 / more special order
Weft density 3.5 ~ 36.7/cm (8.9 ~ 93/inch)
Motor 2HP
Pattern chain cycle 1:40
