Description

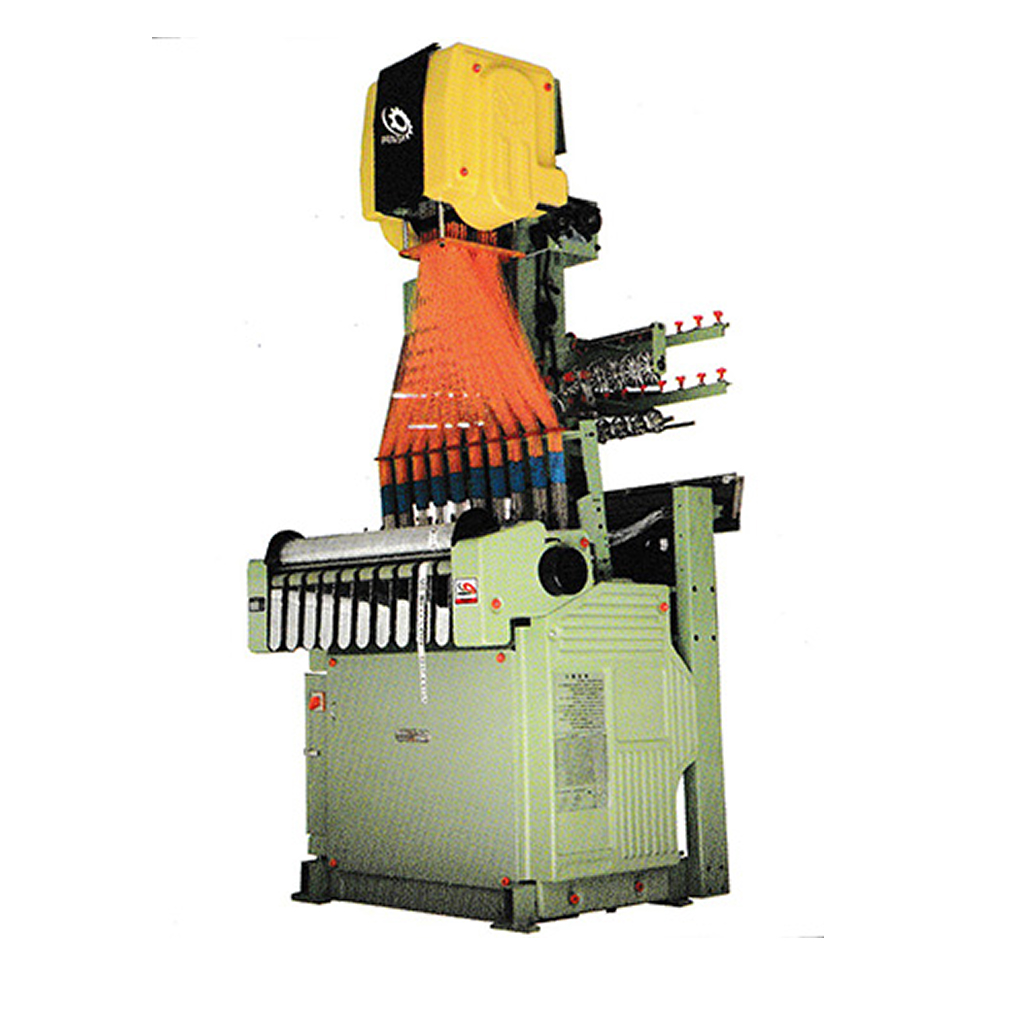

High-Speed Jacquard Narrow Fabric Loom
| Model | 12/30 | 10/45 | 8/50 | 6/55 |
|---|---|---|---|---|
| Tapes | 12 | 10 | 8 | 6 |
| Reed width (mm) | 30 | 45 | 55 | 55 |
| Motor | 2HP: Double Rapid | |||
| Speed | 800-1000RPM | |||
| Heald Frame | 8-10 PCS | |||
| Design Chain Circle | 8-40 | |||
| Weft Density | 3.5-36.7 WEFT/CM | |||
| Normal Attachment | 14-30 Yarn creel places, Software, Jacquard Normal attachment | |||
| Optional Attachment | Rubber feeder, Double hook single needle system, Beam, Frequency conversation timing, CAD plate soft | |||
