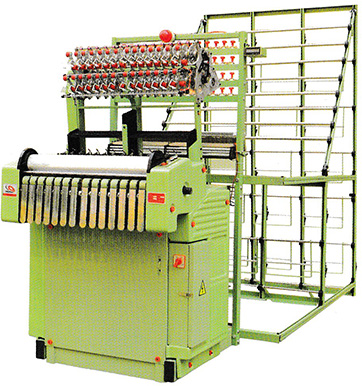

High Speed Shuttleless Needle Looms ( Double Decker / Series)

Purpose:
Needle loom Manufacture widened and thickened narrow fabric such as PP strap,cotton strap, safety belt and flexible belt.

Special device:
Automatic rubber feeding, weft feeding with belts.
Front/back collecting device, Double layer device.
Double take off roller device.

Description

Model	8/30	10/25	12/20	14/20	10/30
Tapes	8X2	10X2	12X2	14X2	10X2
Reed width(mm)	25	20	15	15	25
Motor	1.5
Speed	1200–1400RPM
Heald Frame	12–16 PCS
Design Chain Circle	8–48
Weft Density	3.5–36.7 WEFT/CM
Normal Attachment	16–20 Creel places, Normal attachment
Optional attachment	Beam, Rubber feeder, Back tape-off device, Creel places
