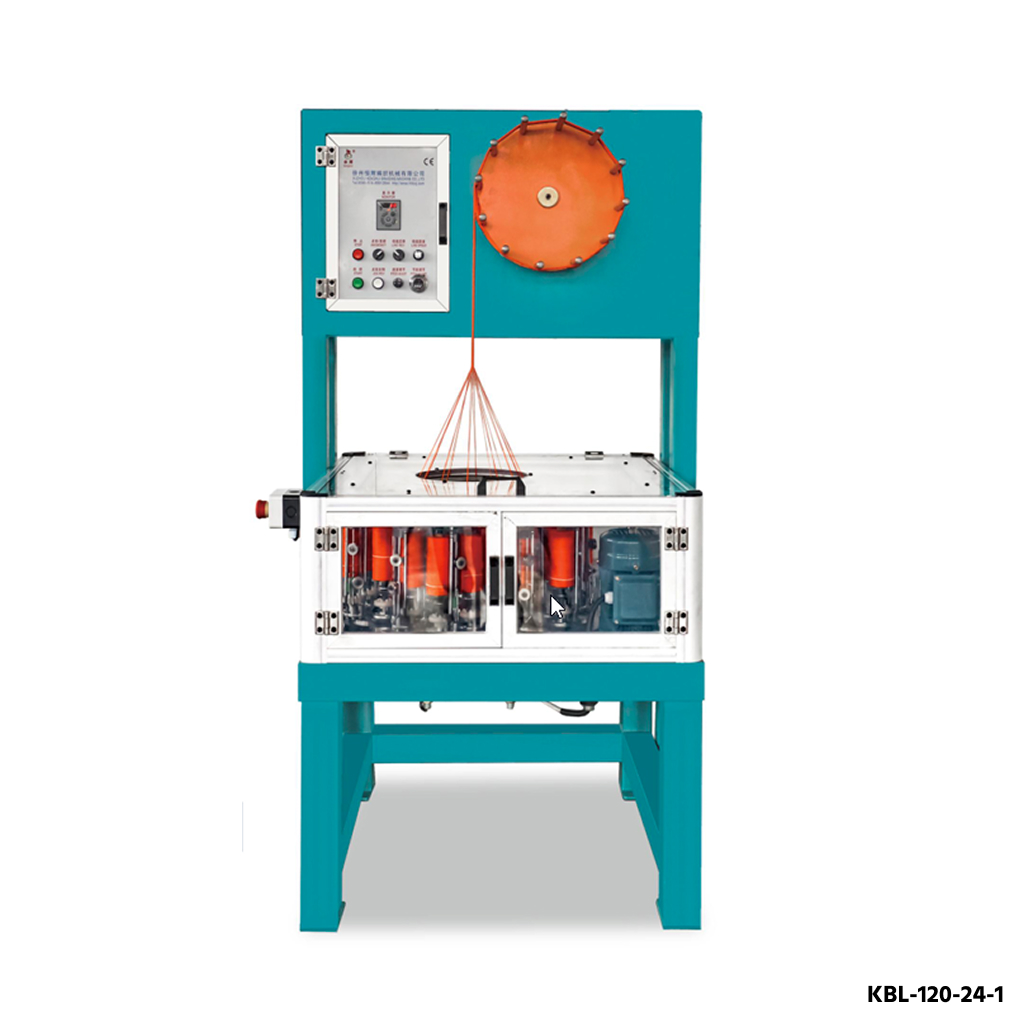

With a fully enclosed cover to ensure safe operation of workers. The foot pedal control switch can be used to keep on and off. The reel can be converted by the adjustment switch, and the braided joint can be hidden. The 120 series wire harness braiding machine is suitable for braiding wiring harness materials directly.

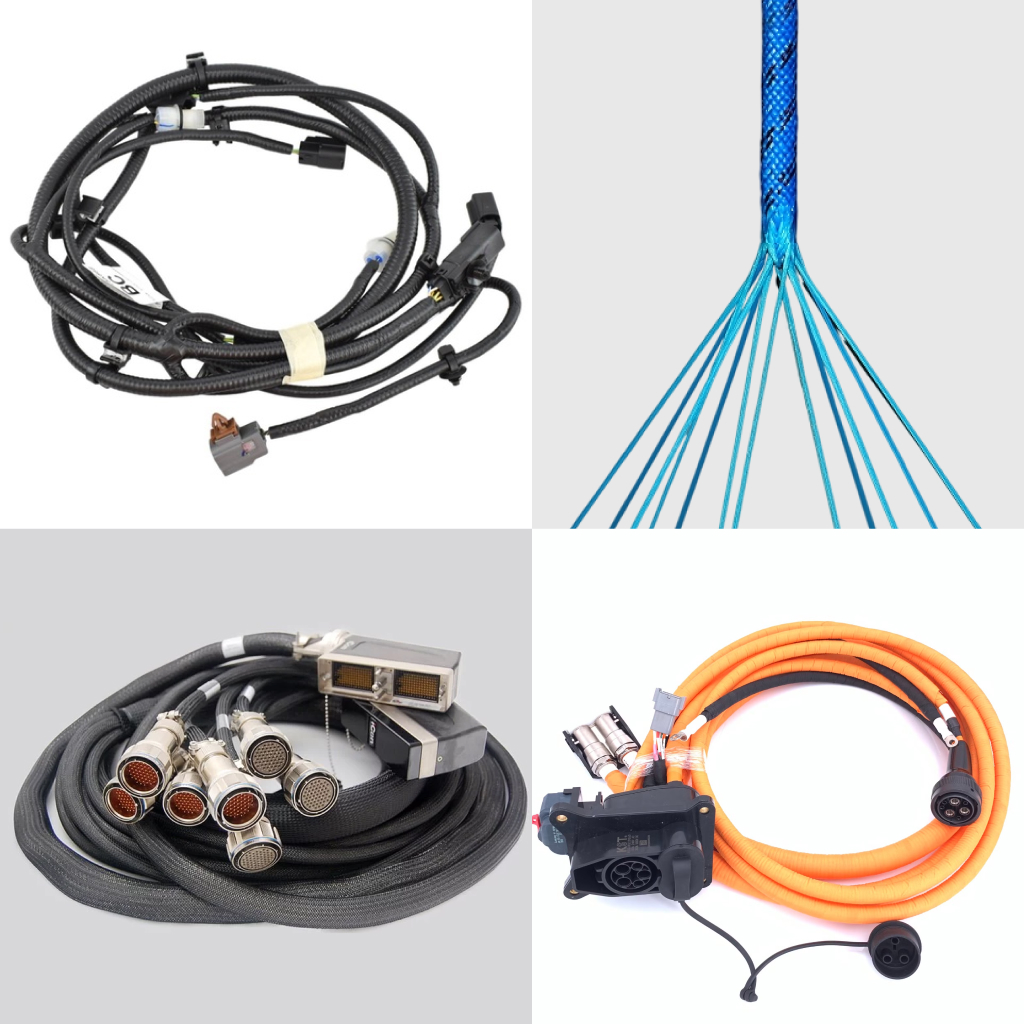

These series machines are mainly for the production of automotive wiring harness, special vehicles wiring harness, aircraft wiring harness, wiring harness of aeronautics and astronautics, etc.
Nylon, PE, PET, Dyneema, UHMWPE, etc.
| Model | Heads | Carries | Max. rpm horngear | Motor Power (kW) | Bobbin size |
|---|---|---|---|---|---|
| KBL-24-110 | 1 | 24 | 230 | 0.75 | A 07 |
| KBL-32-110 | 1 | 32 | 230 | 0.75 | A 07 |
| KBL-40-110 | 1 | 40 | 230 | 0.75 | A 07 |
| KBL-48-110 | 1 | 48 | 230 | 0.75 | A 07 |
| KBL-16-120 | 1 | 16 | 210 | 0.75 | ID 16/140mm |
| KBL-24-120 | 1 | 24 | 210 | 1.1 | ID 16/140mm |
| KBL-32-120 | 1 | 32 | 210 | 1.1 | ID 16/140mm |
| KBL-40-120 | 1 | 40 | 210 | 1.1 | ID 16/140mm |
| KBL-48-120 | 1 | 48 | 210 | 0.55*2 | ID 16/140mm |
