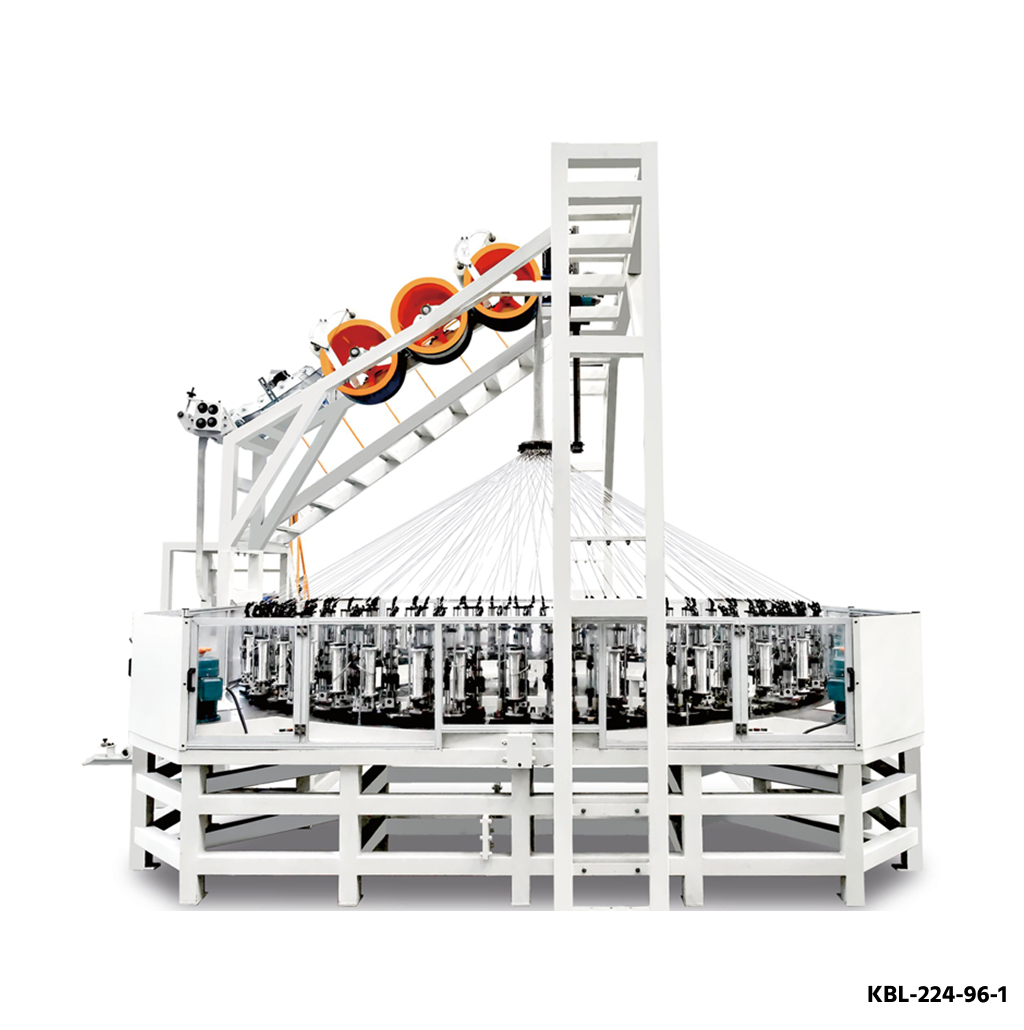

Wire & Cable - KBL-224-96-1
Wire & Cable - Image 2

Wire & Cable

Advantages

Features: The braiding machinery is functional, including meter counter, auto stop motion, recording, motor overload protection during production, and can braid with a variety of materials by replacing the spindles. Multiple configurations are available and can be customized to meet a wide range of braiding needs. Various yarns, fiberglass, carbon fiber, asbestos, graphite, and various composite materials.

Application

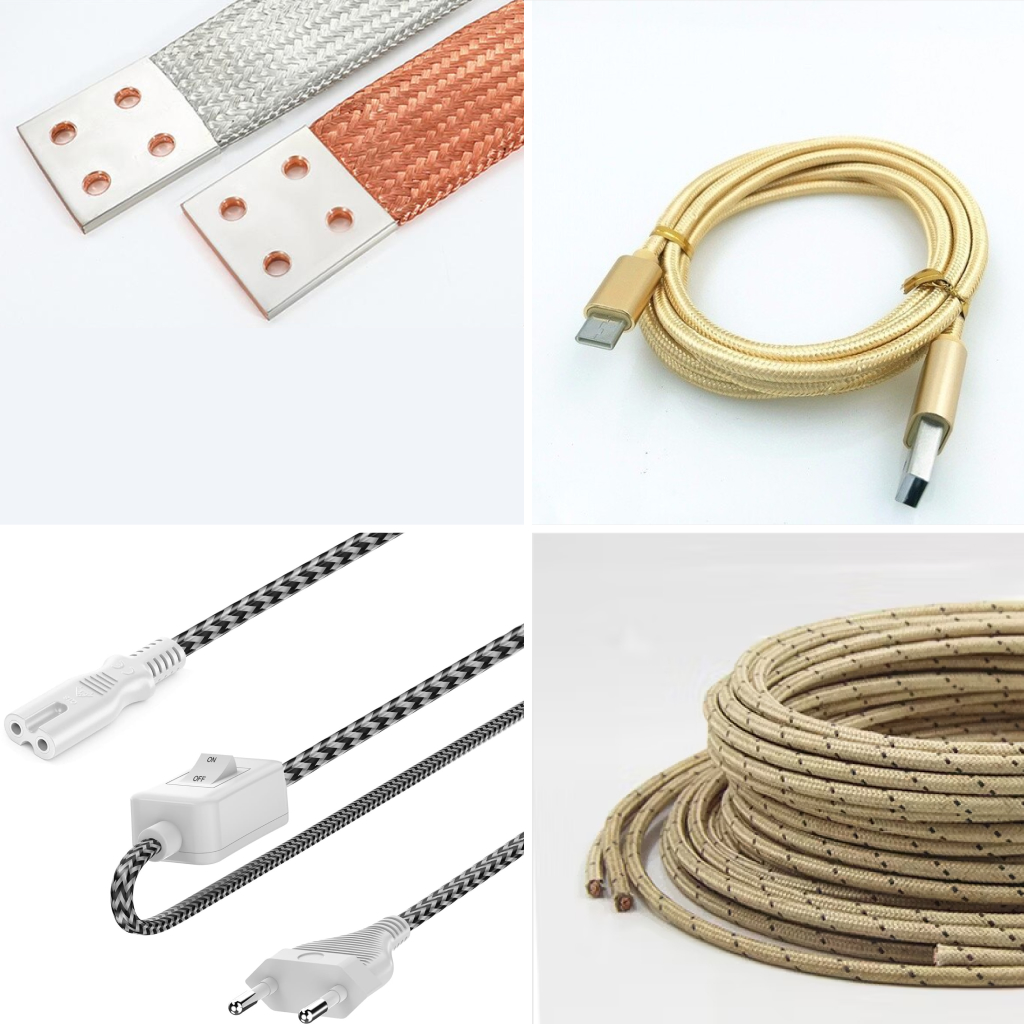

These series machines are mainly for braiding: communications cable, signal cable, USB cable, high temperature wire, insulation wire, iron wire, special cable, Rice cooker power cable, conduction band, shielded cable, control cable, shielding layer of cable, coaxial cable, etc.

Material Use

Copper, aluminum, magnesium wire, tin wire, stainless steel wire and other metal material. PP, PE, Fiberglass, Carbon fiber, cotton yarn, nylon, monofilament, etc.

Category: Brand:

Description

Model Heads Carries Max.rpm.horngear Motor Power (kW) Bobbin size
KBL-8-300 1 8 83 0.75 A18
KBL-8-2-140 2 8 193 0.75 A11
KBL-8-2-160 2 8 158 0.75 A09
KBL-8-2-224 2 8 108 1.1 A18
KBL-8-2-300 2 8 83 1.1 A18
KBL-12-4-80 4 12 360 0.55 A01/04
KBL-12-4-90 4 12 300 0.55 A01/05
KBL-12-160 1 12 158 1.1 A14
KBL-12-224 1 12 108 1.1 A18
KBL-16-4-80 4 16 360 0.75 A01/04
KBL-16-4-90 4 16 300 0.75 A01/05
KBL-16-2-110 2 16 230 0.75 A09
KBL-16-2-120 2 16 218 0.75 A09
KBL-16-160 1 16 158 0.75 A11
KBL-16-224 1 16 108 0.75 A18
KBL-24-4-80 4 24 360 0.55 A01/04
KBL-24-4-90 4 24 300 0.55 A01/05
KBL-24-2-110 2 24 230 0.75 A09
KBL-24-120 1 24 210 0.75 A11
KBL-24-160 1 24 158 0.75 A18
KBL-24-168 1 24 154 0.75 A18
KBL-24-224 1 24 108 2*0.75 A18
KBL-32-2-80 2 32 360 0.75 A01/04
KBL-32-2-90 2 32 300 0.75 A01/05
KBL-32-110 1 32 230 0.55 A09
KBL-32-120 1 32 210 0.75 A09
KBL-32-160 1 32 158 1.1 A11
KBL-32-224 1 32 108 1.1 A 18
KBL-40-80 1 40 360 0.75 A 01/04
KBL-40-90 1 40 300 0.75 A 01/05
KBL-40-110 1 40 230 2*0.55 A 09
KBL-40-224 1 40 108 0.75 A 13
KBL-40-2-80 2 40 360 0.75 A 01/04
KBL-40-2-90 2 40 300 0.75 A 01/05
KBL-44-80 1 44 360 0.75 A 01/04
KBL-44-90 1 44 300 0.75 A 01/05
KBL-48-80 1 48 360 0.75 A 01/04
KBL-48-90 1 48 300 0.75 A 01/05
KBL-48-110 1 48 230 2*0.37 A 09
KBL-48-120 1 48 210 2*0.75 A 13
KBL-48-160 1 48 158 2*0.75 A 18
KBL-48-224 1 48 108 3*0.55 A 18
KBL-48-2-80 2 48 360 1.1 A 01/04
KBL-48-2-90 2 48 300 1.1 A 01/05
