Garments Accessories
Garments Accessories - Image 2
Garments Accessories - Image 3
Garments Accessories - Image 4
Garments Accessories - Image 5
Garments Accessories - Image 6

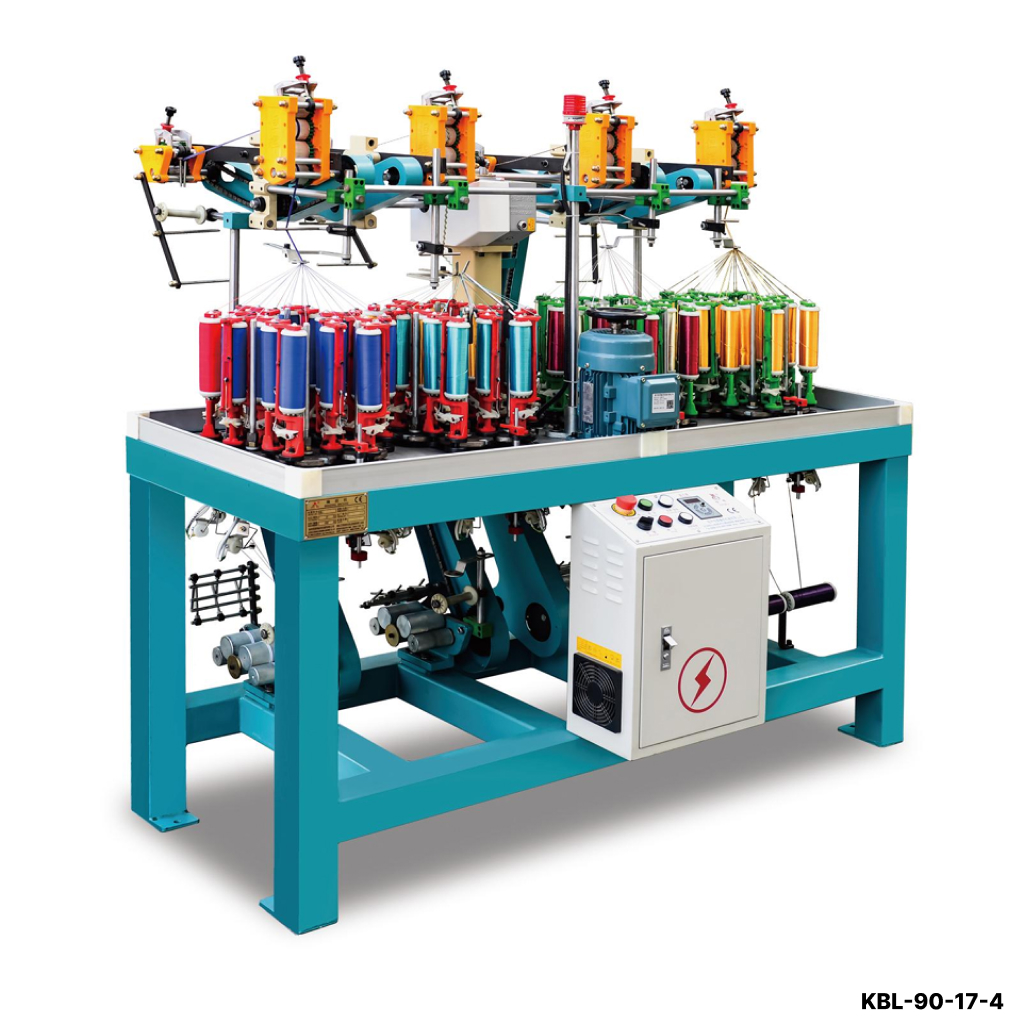

KBL-90-17-4
Garments Accessories - Image 8

Garments Accessories

Advantages:

This machine is reasonable in design, small in area, convenient in operation, large in capacity of bobbin, high in output, adjustable in pitch (gear or servo motor). Machine has auto-stop motion, inverter has various functions, can count meters, adjust speed, set current protection, record production time, and set output. This machine can be equipped with rubber feeder,
cross winding system, or spool packing system. All machines accept OEM.

Application:

Garments accessories braiding machine is applied for the production of round & flat shoelace, elastic cord & lace, flat lace, zigzag lace, piping cord, double color cord, triangular cord, square cord, quadrangular cord, and multicolor lace for national costume, etc.

Material use:

PP, Polyester, PE, HDPE, Cotton, Nylon, Dyneema, etc.

Category: Brand:

Description

Model Heads Carries Max.rpm.horngear Motor Power kW Bobbin size
KBL-5-2-162 2 5 150 0.75 A 13
KBL-7-2-120 2 7 280 0.55 A 04
KBL-9-4-80 4 9 360 0.55 A 01
KBL-9-4-90 4 9 300 0.55 A 04
KBL-9-8-80 8 9 360 1.1 A 01
KBL-9-8-90 8 9 300 1.1 A 04
KBL-11-8-80 8 11 360 0.75 A 01
KBL-11-8-90 8 11 300 0.75 A 04
KBL-12-4-80 4 12 360 0.55 A 01
KBL-12-4-90 4 12 300 0.55 A 04
KBL-13-2-80 2 13 360 0.55 A 01
KBL-13-2-90 2 13 300 0.55 A 04
KBL-13-2-130 2 13 242 0.75 A 13
KBL-13-4-80 4 13 360 0.55 A 01
KBL-13-4-90 4 13 300 0.55 A 04
KBL-16-4-80 4 16 360 0.75 A 01
KBL-16-4-90 4 16 300 0.75 A 04
KBL-16-2-80 2 16 360 0.37 A 01
KBL-16-2-90 2 16 300 0.37 A 04
KBL-17-2-80 2 17 360 0.55 A 01
KBL-17-2-90 2 17 300 0.55 A 04
KBL-17-2-130 2 17 242 0.75 A 13
KBL-17-4-80 4 17 360 0.75 A 01
KBL-17-4-90 4 17 300 0.75 A 04
KBL-20-4-80 4 20 360 0.75 A 01
KBL-20-4-90 4 20 300 0.75 A 04
KBL-21-2-80 2 21 360 0.55 A 01
KBL-21-2-90 2 21 300 0.55 A 04
KBL-21-4-80 4 21 360 0.75 A 01
KBL-21-4-90 4 21 300 0.75 A 04
KBL-24-2-80 2 24 360 0.55 A 01
KBL-24-2-90 2 24 300 0.55 A 04
KBL-25-2-80 2 25 360 0.55 A 01
KBL-25-2-90 2 25 300 0.55 A 04
KBL-25-4-80 4 25 360 0.75 A 01
KBL-25-4-90 4 25 300 0.75 A 04
KBL-25-2-110 2 25 230 0.75 A 07
KBL-25-2-130 2 25 242 0.75 A 13
KBL-26-2-90 2 26 300 0.55 A 01/04
KBL-26-2-100 2 26 288 0.55 A 01/04
KBL-27-2-90 2 27 300 0.55 A 01
KBL-28-2-110 2 28 230 0.55 A 01
KBL-29-2-80 2 29 360 0.55 A 01
KBL-29-2-90 2 29 300 0.55 A 04
KBL-29-2-110 2 29 230 0.75 A 01
KBL-32-2-80 2 32 360 0.75 A 01
KBL-32-2-90 2 32 300 0.75 A 04
KBL-33-2-80 2 33 360 0.75 A 01
KBL-33-2-90 2 33 300 0.75 A 04
KBL-36-2-80 2 36 360 0.75 A 01
KBL-36-2-90 2 36 300 0.75 A 04
KBL-36-2-110 2 36 230 0.75 A 01
KBL-37-2-80 2 37 360 0.75 A 04
KBL-37-90 1 37 300 0.75 A 01
KBL-37-100 1 37 288 0.55 A 01
KBL-37-2-90 2 37 300 0.75 A 01
KBL-39-100 1 39 288 0.55 A 01
KBL-40-80 1 40 360 0.75 A 01
KBL-40-90 1 40 300 0.75 A 04
KBL-40-2-80 2 40 360 0.75 A 01
KBL-40-2-90 2 40 300 0.75 A 04
KBL-41-80 1 41 360 0.75 A 01
KBL-41-90 1 41 300 0.75 A 04
KBL-41-110 1 41 230 0.55 A 07
KBL-44-80 1 44 360 0.75 A 01
KBL-44-90 1 44 300 0.75 A 04
KBL-44-2-90 2 44 300 0.75 A 01
KBL-45-90 1 45 300 0.55 A 04
KBL-46-2-90 2 46 300 0.75 A 04
KBL-47-90 1 47 300 0.55 A 04
KBL-47-110 1 47 230 0.55 A 07
KBL-48-80 1 48 360 0.75 A 01
KBL-48-90 1 48 300 0.75 A 04
KBL-48-100 1 48 288 0.75 A 01
KBL-48-2-80 2 48 360 0.75 A 01
KBL-48-2-90 2 48 300 0.75 A 04
KBL-49-90 1 49 300 0.55 A 04
KBL-49-110 1 49 230 0.55 A 07
KBL-52-100 1 52 288 0.75 A 01
KBL-52-2-110 2 52 230 0.75 A 04
KBL-53-90 1 53 300 2*0.55 A 04
KBL-56-100 1 56 288 0.75 A 01
KBL-57-90 1 57 300 2*0.55 A 04
KBL-65-90 1 65 300 2*0.55 A 04
KBL-75-90 1 75 300 2*0.55 A 04
KBL-77-100 1 77 288 2*0.55 A 01
KBL-81-90 1 81 300 2*0.55 A 04
KBL-105-90 1 105 300 2*0.55 A 01
KBL-106-100 1 106 288 2*0.55 A 01
