Double layers

Advantages:

Main features: convenient, high efficiency, braider is closer, stronger sense of tension or higher.
Products based on the high-end market, must possess high quality of the parts;
The first extensive use of alloy material, physical properties and mechanical properties.
Can produce different specifications according to requirements.

Application:

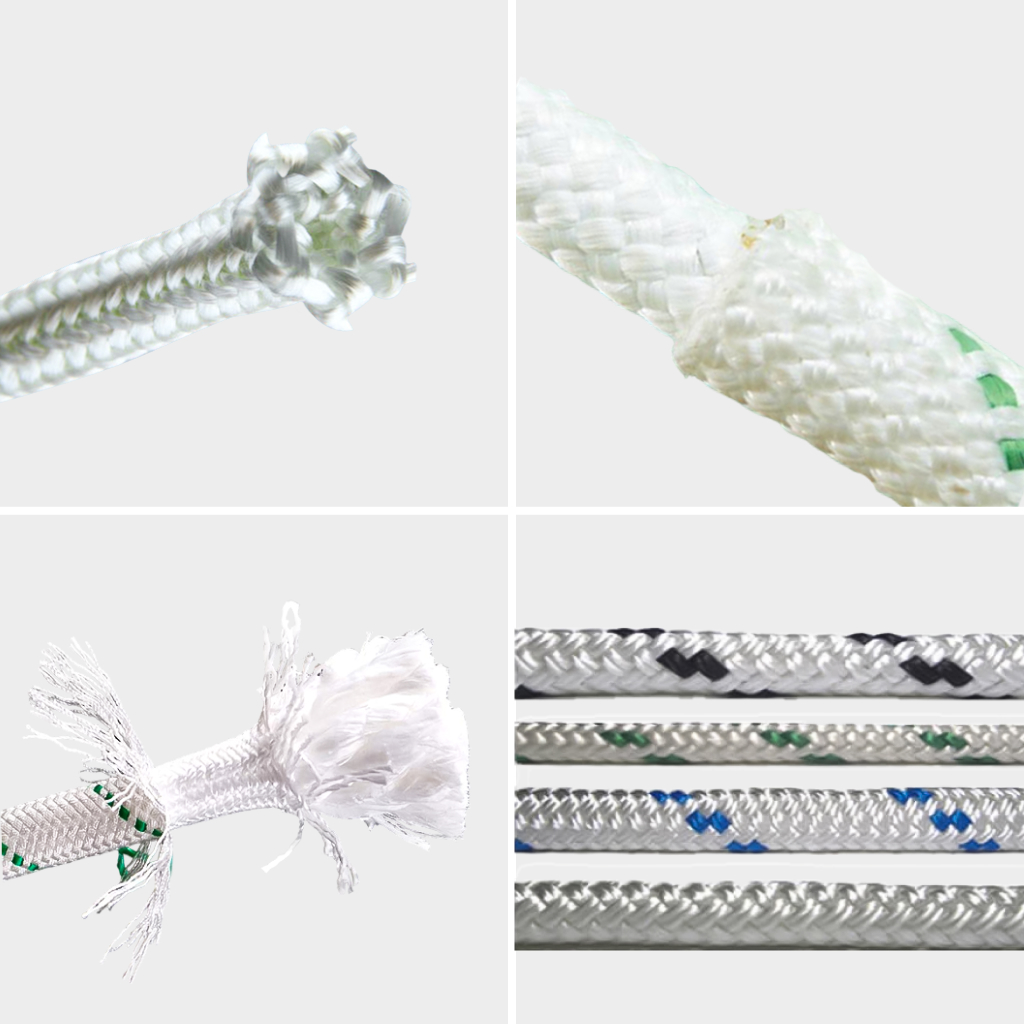

Braiding layer of cable, high-pressure hose, safety rope, hoisting rope, sports ropes, etc.

Material use:

Nylon, Dyneema, PP, Polyester, aramid.

Description

Model Heads Carries Max.rpm.horngear Motor Power kW Bobbin size
KBL-48/56-90 2 48/56 300 0.55*3 A 04
KBL-16/16-130 2 16/16 160 0.75*3 A 13
KBL-32/16-130 2 32/16 160 0.75*3 A 13

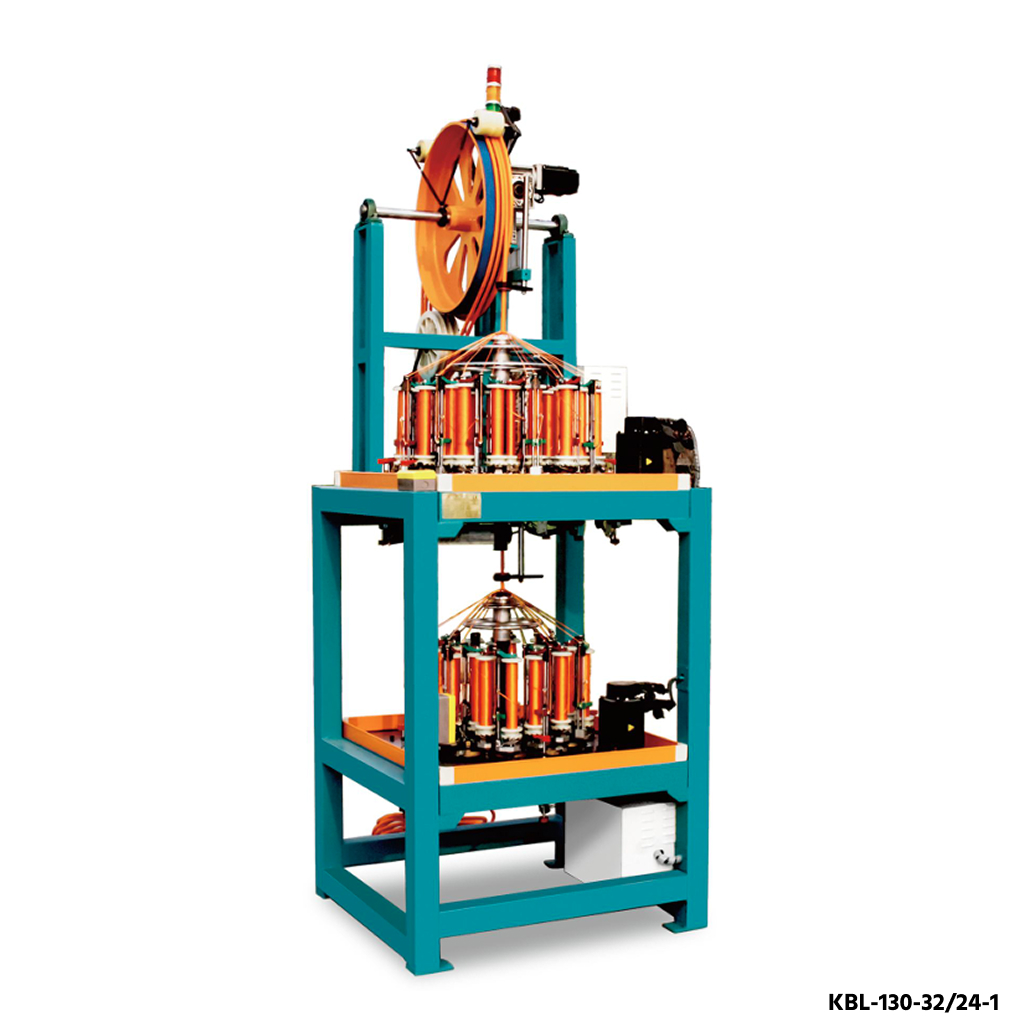

KBL-32/24-130 2 32/24 160 0.75*3 A 13
KBL-16/24-130 2 16/24 160 0.75*3 A 13
KBL-20/24-130 2 20/24 160 0.75*3 A 13
KBL-24/24-130 2 24/24 160 0.75*3 A 13
KBL-32/32-140 2 32/32 160 0.75*3 A 13
KBL-20/24-140 2 20/24 200 1.5*2 A 13
KBL-48/48-140 2 48/48 200 1.5*2 A 13
KBL-16/16-140 2 16/16 155 1.5*2 A 13
