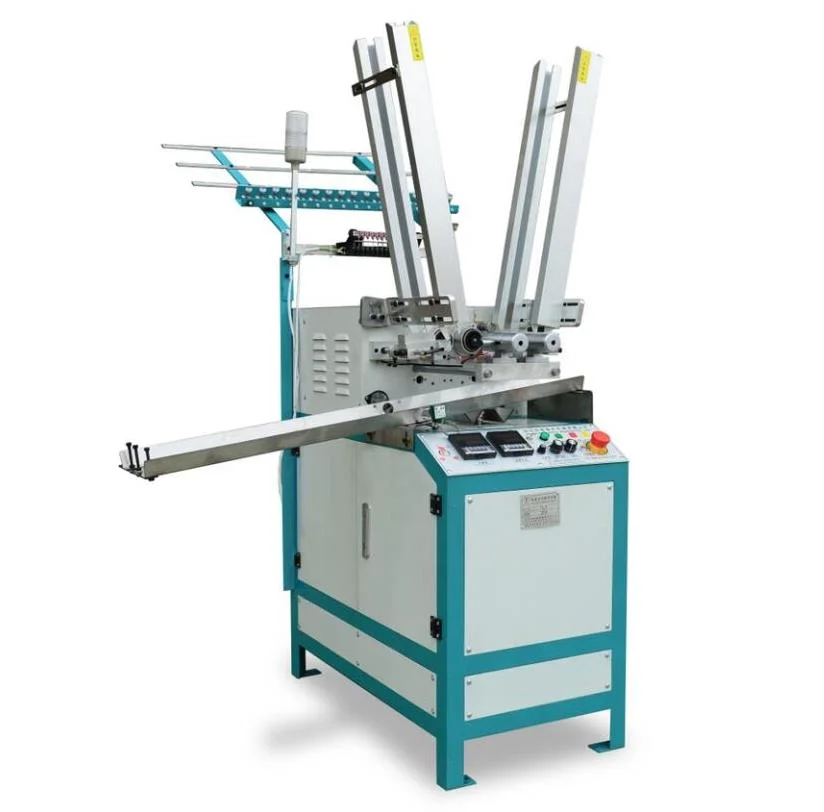

BSJ-2AWMC Automatic winding machine with HMI and meter counter

Description

Function	Details	Configuration	YES/NO
Bobbin size	A04 bobbin φ47×φ13×139mm	Frequency inverter	YES
Motor	0.425kw	Speed adjust	YES
Dimension	1000×800×1200mm	Bobbin holder	YES
Weight	150 kgs	Heating wire cutting	YES
HS CODE	844590	Counter	YES
Voltage	220V/380V/440	Traverse speed	10-100RPM
Spindle speed	0-3400RPM	12P automatic stop motion	YES
Operation way	Buttons
Yarn size	100D–3000D
Controller	Mitsubishi PLC
